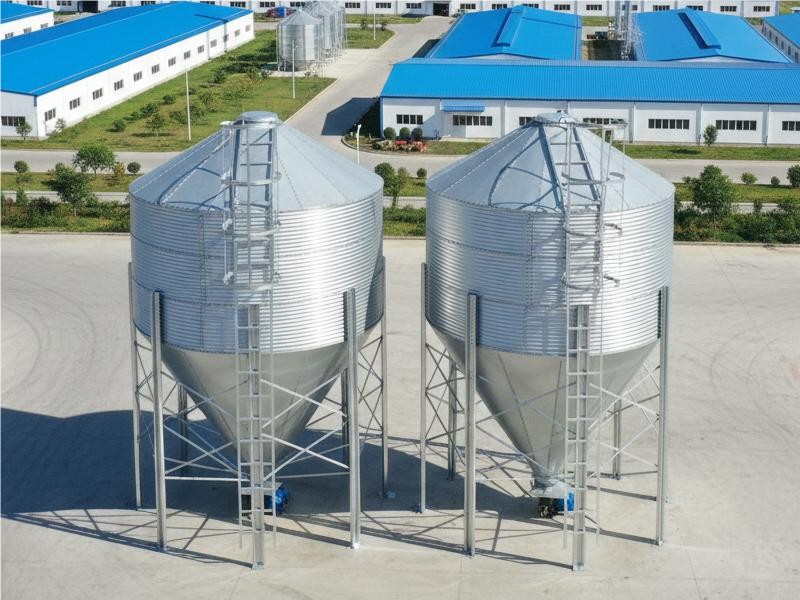

Small feed silo
These small feed silos are made just for small farms, family-run farms, and small feed mills, they're really handy to use. Sizes go from 4 cubic meters to more than 83 cubic meters, can meet the need of storing small batches of pellets, powders or grains. Made of hot-dip galvanized steel, they stand wind and rain pretty well, can last over twenty years easy.
The silo has a cylinder body with a cone bottom, inner walls are smooth. Feed won't stick to them, unloading is smooth and there's not much residue left. Sealing is good, keeps moisture and bugs out, so feed won't get moldy or lose nutrients. There's a viewing window or a transparent cone part, you can see how much feed is left without climbing up to check.
Installation is real simple, thanks to modular parts. No big equipment needed, a few workers can put it together in a couple days. Transportation is convenient too, parts can be stacked and bundled, save a lot on shipping costs. They don't take up much space, fit both outdoor and indoor places, pretty flexible. When used with automated feeding lines, they can feed livestock automatically, no need to carry feed by hand, save labor costs and also cut down on feed waste.
If your site has special requirements, we can customize the size for you, works for chicken farms, pig farms or cattle farms all the same. The closed design also keeps rats and flies away from contaminating the feed, livestock eat safer, good for their health.
|
Technical Specifications |
|
Diameter: 1.8 meters, height: 3.5 meters, layers: 1 layer, capacity: 4 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 4 |
|
Diameter: 1.8 meters, height: 4.4 meters, layers: 2 layers, capacity: 6.3 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 4 |
|
Diameter: 2.45 meters, height: 5 meters, layers: 1 layer, capacity: 9.65 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 4 |
|
Diameter: 2.45 meters, height: 5.9 meters, layers: 2 layers, capacity: 13.9 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 6 |
|
Diameter: 2.45 meters, height: 6.8 meters, layers: 3 layers, capacity: 18 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized |
|
Diameter: 2.75 meters, height: 6.6 meters, layers: 3 layers, capacity: 22 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 6 |
|
Diameter: 3.05 meters, height: 7.4 meters, layers: 3 layers, capacity: 30 cubic meters, barrel thickness: 1.0mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 6 |
|
Diameter: 3.65 meters, height: 7 meters, layers: 2 layers, capacity: 34.8 cubic meters, barrel thickness: 1.2mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 8 |
|
Diameter: 3.67 meters, height: 7.9 meters, layers: 3 layers, capacity: 44 cubic meters, barrel thickness: 1.2mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, leg number: 8 |
|
Diameter: 3.67 meters, height: 8.8 meters, layers: 4 layers, capacity: 53.5 cubic meters, barrel thickness: 1.2mm, upper and lower cone thickness: 1.2mm, galvanized layer thickness: 275 grams, column plate thickness: 3mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, number of legs: 8 pieces. |
|
Diameter: 4.57 meters, layers: 2 layers, total volume: 54m³, total height: 6.8 meters, barrel thickness: 1.2mm, upper cone thickness: 1.2mm, lower cone plate: 1.5mm, galvanized layer thickness: 275 grams, column plate thickness: 3.0mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, number of legs: 10 pieces. |
|
Diameter: 4.57 meters, layers: 3 layers, total volume: 68m³, total height: 7.7 meters, barrel thickness: 1.2mm, upper cone thickness: 1.2mm, lower cone plate: 1.5mm, galvanized layer thickness: 275 grams, column plate thickness: 3.0mm, support brace: 1000 degree hot-dip galvanized, screws: galvanized, number of legs: 10 pieces. |
