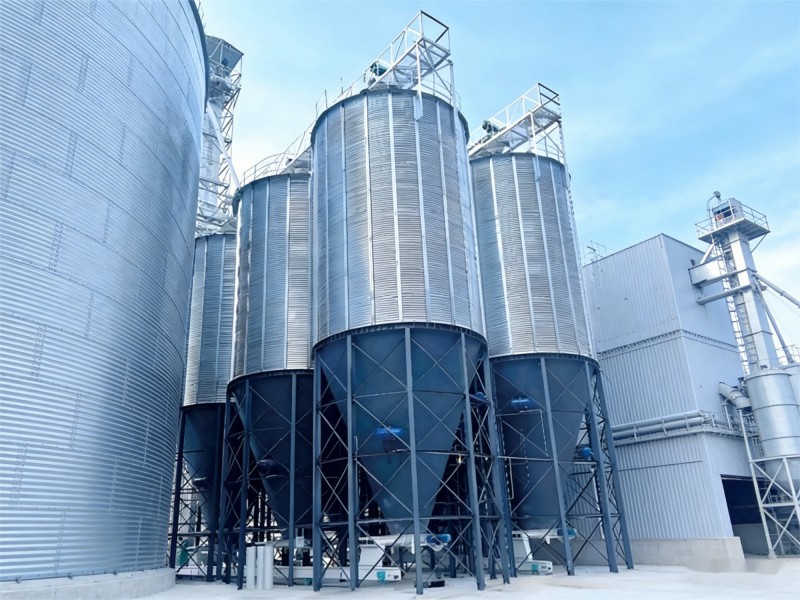

Soybean meal steel silo
Soybean meal steel silos are prefabricated steel ones that are made just for storing soybean meal. They're essential storage gear for today's feed, livestock, and grain-oil processing businesses. Little by little they're taking the place of old-fashioned warehouses, thanks to their good efficiency, big storage capacity, and pretty high automation level.
Soybean meal doesn't flow well, it's easy to form bridges or arches at the outlet, and that stops the material from coming out. So for this reason, soybean meal silos adopt a 70° conical bottom, also they are fitted with air cannons to make sure the soybean meal can be discharged smoothly.
Features
Large cone base angle;
equipped with an air cannon;
prevents arching.
Soybean Meal Steel Silo Volume Table (70°)
4.5 series (φ4584mm 70°)
|
model number |
Storage capacity(m³) |
Circumferential number of sheets |
Height (meters) |
Capacity (tons) |
|
|
cylinder height |
Total height |
soybean meal |
|||
|
0.6 |
|||||
|
WXDPO4503 |
96 |
5 |
3.36 |
11.3 |
58 |
|
WXDP⁰4504 |
114 |
4.48 |
12.42 |
68 |
|
|
WXDP04505 |
132 |
5.6 |
13.54 |
79 |
|
|
WXDP04506 |
151 |
6.72 |
14.66 |
91 |
|
|
WXDP04507 |
170 |
7.84 |
15.78 |
102 |
|
5.5 series (φ5500mm 70°)
|
model number |
Storage capacity(m³) |
Circumferential number of sheets |
Height (meters) |
Capacity (tons) |
||
|
cylinder height |
Total height |
soybean meal |
||||
|
0.6 |
||||||
|
WXDP05504 |
176 |
6 |
4.48 |
13.7 |
106 |
|
|
WXDP05505 |
203 |
5.6 |
14.82 |
122 |
||
|
WXDP05506 |
230 |
6.72 |
15.94 |
138 |
||
|
WXDP05507 |
256 |
7.84 |
17.06 |
154 |
||
|
WSDP05508 |
283 |
8.96 |
18.18 |
170 |
||
6.4 series (φ6417mm 70°)
|
model number |
Storage capacity(m³) |
Circumferential number of sheets |
Height (meters) |
Capacity (tons) |
|
|
cylinder height |
Total height |
soybean meal |
|||
|
0.6 |
|||||
|
WXDP06405 |
291 |
7 |
5.6 |
16.6 |
175 |
|
WXDP06406 |
328 |
6.72 |
17.72 |
197 |
|
|
WXDP06407 |
364 |
7.84 |
18.84 |
218 |
|
|
WXDP06408 |
400 |
8.96 |
19.96 |
240 |
|
|
WXDP06409 |
436 |
10.08 |
21.08 |
262 |
|
7.3 series (φ7334mm 70°)
|
model number |
Storage capacity(m³) |
Circumferential number of sheets |
Height (meters) |
Capacity (tons) |
|
|
cylinder height |
Total height |
soybean meal |
|||
|
0.6 |
|||||
|
WXDP07305 |
399 |
8 |
5.6 |
17.6 |
239 |
|
WXDP07306 |
446 |
6.72 |
18.72 |
268 |
|
|
WXDP07307 |
493 |
7.84 |
19.84 |
296 |
|
|
WXDP07308 |
540 |
8.96 |
20.96 |
324 |
|
|
WXDP07309 |
587 |
10.08 |
22.08 |
352 |
|
