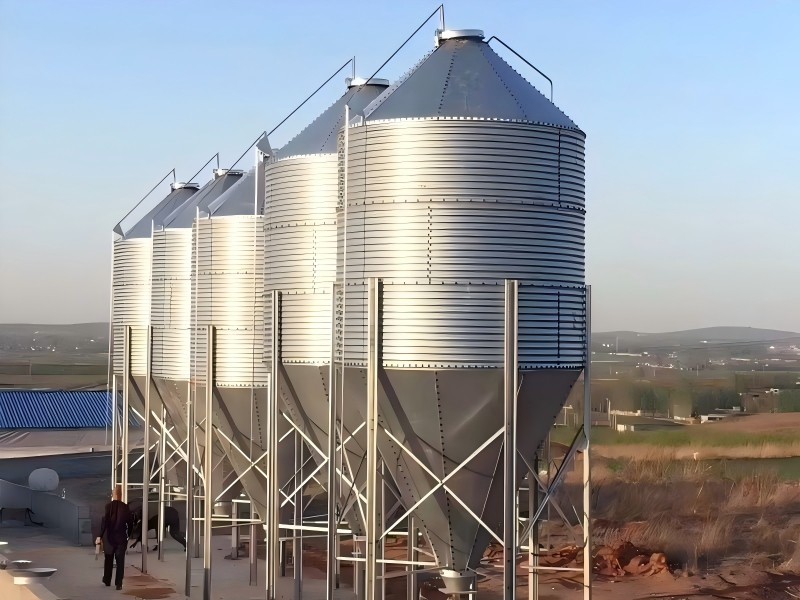

Feed silo
Our feed silos are all made of galvanized steel sheets with a zinc coating content of 275g/m², produced by large, well-known domestic steel manufacturers. They possess the advantages of corrosion resistance,high strength,and long service life.The upper cover of the material tower adopts an automatic tension control structure,allowing for free opening and closing operations of the material tower from the ground handrail.The cone of the material tower is equipped with an organic transparent observation window,facilitating real-time observation of the material conveying situ ation.Each connecting gap of the material tower is sealed with special sealant,providing advantages such as nweather resistance,firmness,and long service life.
Instructions:
1.The cone angle under the material tower is 60°.
2.The distance between the bottom outlet of the warehouse and the ground is
70cm.
3.The warehouse volume is the total volume of the warehouse top,warehouse barrel,and warehouse cone.
4.The bulk density is calculated based on a density of 0.65 tons/m³.
Specification：
|
Model |
Diameter(m) |
Number of layers |
Numberoflegs |
Total Height(m) |
Volume (m³) |
Capacity(t) |
|
WX1801 |
1.8 |
1 |
4 |
3.5 |
4 |
2.6 |
|
WX1802 |
1.8 |
2 |
4 |
4.5 |
6.3 |
4.0 |
|
WX2401 |
2.45 |
1 |
4 |
5 |
8.8 |
5.7 |
|
WX2402 |
2.45 |
2 |
6 |
5.9 |
13 |
8.45 |
|
WX2403 |
2.45 |
3 |
6 |
6.8 |
17.3 |
11 |
|
WX2703 |
2.75 |
3 |
6 |
6.8 |
21.9 |
14 |
|
WX3052 |
3.05 |
2 |
6 |
7.5 |
29.7 |
19 |
|
WX3602 |
3.65 |
2 |
8 |
7.0 |
34.7 |
22.5 |
|
WX3603 |
3.65 |
3 |
8 |
8.0 |
44 |
28.6 |
|
WX4503 |
4.57 |
3 |
10 |
7.7 |
68 |
44 |
|
WX4504 |
4.57 |
4 |
10 |
8.6 |
83 |
54 |

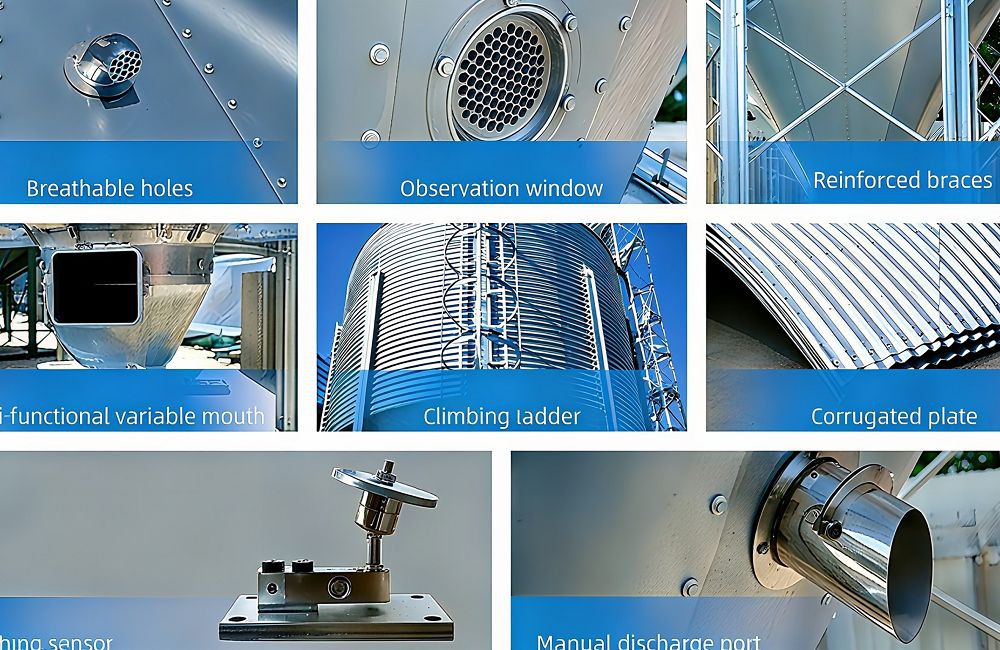

As shown in the figure above: including vent, observation window, vent, multi-functional variable port, ladder, corrugated plate, weighing sensor (optional), manual unloading port (optional).
FAQ
Q: How to Choose the Size of a Feed Silo?
A: Whether you need mini feed silos for a family farm or specific ranch, small feed silos for a medium-sized farm, or large-capacity storage solutions for large-scale livestock enterprises or feed mills, we can provide them. Our feed silos come in a wide range of capacities and sizes, from a few tons to hundreds of tons, and can be customized to your actual feed storage needs and site conditions to optimize space utilization.
