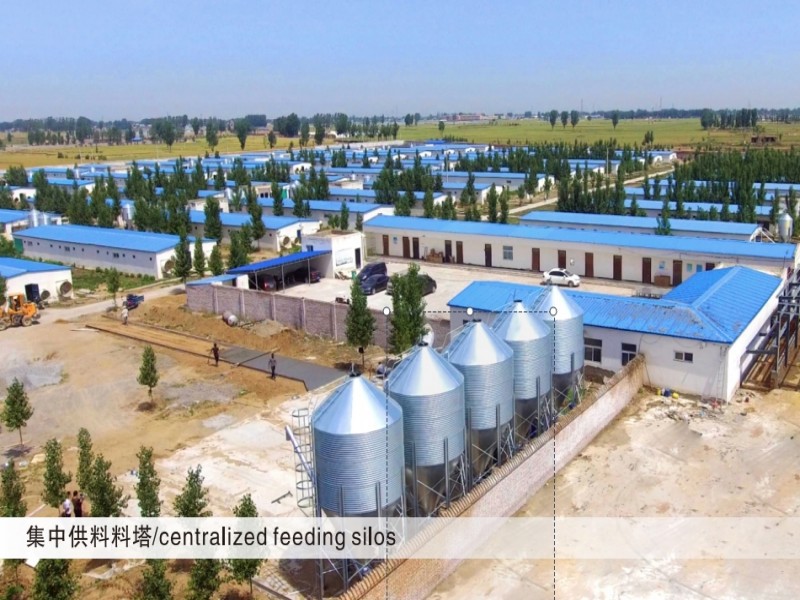

Corrugated metal silo
Our corrugated metal silo is built with galvanized steel plates. These plates have a zinc coating of 275g/m², and we get them from those big, well-known steel manufacturers in our country. They're great at resisting rust, pretty tough, and can hold up for years without wearing out too quick.
The silo's top cover uses an auto tension control structure. You don't need to climb up to operate it-just use the handrail on the ground, and it opens and closes real easy.
The cone section of the corrugated metal silo has a clear plastic viewing window. You can check through it whenever you want, so you can see exactly how the grain or feed is flowing inside, no need to make guesses.
Every joint on the silo is sealed tight with a special sealant. It stands up well to all kinds of weather, stays solid and doesn't crack easily, so the silo can keep running smoothly for a long time.
Composition details diagram
As shown in the figure above: Ventilation holes, observation window, reinforcing brace, multi-functional expansion joint, ladder, corrugated sheet, load cell, manual feed port.
Specification
|
Model |
Diameter(m) |
Number of layers |
Numberoflegs |
Total Height(m) |
Volume (m³) |
Capacity(t) |
|
WX1801 |
1.8 |
1 |
4 |
3.5 |
4 |
2.6 |
|
WX1802 |
1.8 |
2 |
4 |
4.5 |
6.3 |
4.0 |
|
WX2401 |
2.45 |
1 |
4 |
5 |
8.8 |
5.7 |
|
WX2402 |
2.45 |
2 |
6 |
5.9 |
13 |
8.45 |
|
WX2403 |
2.45 |
3 |
6 |
6.8 |
17.3 |
11 |
|
WX2703 |
2.75 |
3 |
6 |
6.8 |
21.9 |
14 |
|
WX3052 |
3.05 |
2 |
6 |
7.5 |
29.7 |
19 |
|
WX3602 |
3.65 |
2 |
8 |
7.0 |
34.7 |
22.5 |
|
WX3603 |
3.65 |
3 |
8 |
8.0 |
44 |
28.6 |
|
WX4503 |
4.57 |
3 |
10 |
7.7 |
68 |
44 |
|
WX4504 |
4.57 |
4 |
10 |
8.6 |
83 |
54 |
