Manure Scraper

The manure scraper uses mature and pretty advanced manufacturing tech and processes-it's a special manure removal system just for pig farms. It cuts down the cost of manual manure cleaning, lessens the ammonia and bacterial growth inside pigsties, gets pigsty hygiene way better, and can even achieve zero emissions.

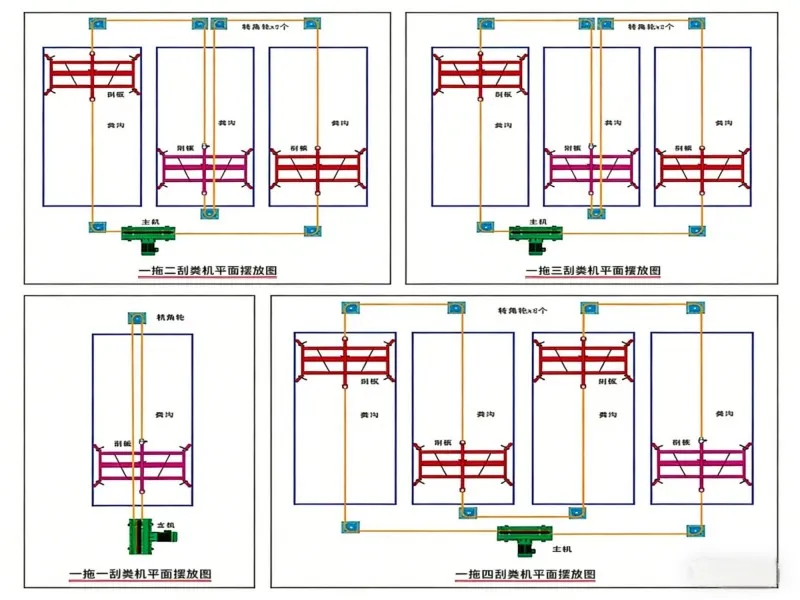

Scraper plan

1.Simple to operate, it's full automatic control

2.Cuts down wastewater treatment workload, saves the cost on that

3.The manure taken out from pigsties can be directly used for composting

4.Makes pigsty environment much better, reduces ammonia produced

5.Adopts an advanced geared motor, ensures a proper output transmission ratio

6.Motor connects directly to reducer, small size, easy for operation

7.304 stainless steel scraper, really good for extending the manure cleaner's service life

8.304 stainless steel wire rope, anti-corrosion, long service life

The main body of the manure scraper is made of 6mm 304 stainless steel (or 6mm galvanized sheet), with a maintenance-free gear reducer motor and a 6-groove cast iron wire rope pulley. The whole structure is simple, sturdy and durable; fully automated, so you can operate it easily without much trouble.

The scraper blades of the manure scraper are 5mm thick 304 stainless steel. Both sides are fitted with spring adjustment devices, which makes it suitable for those irregular manure passages in pig farms.
